D4S

Download Duplicator 4S PDF catalogue

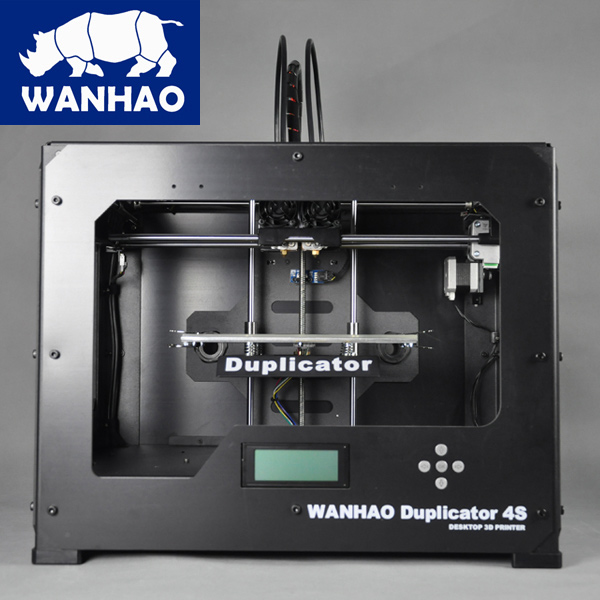

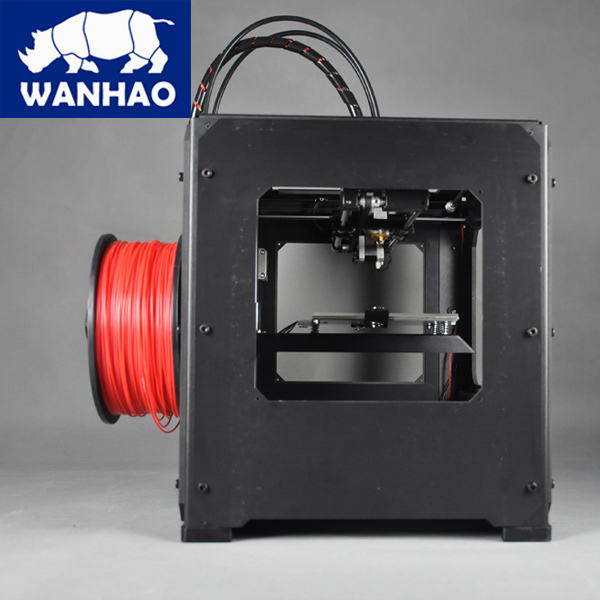

The Duplicator 4S is our first dedicated 1.75 mm filament extruder. This extruder was designed from scratch, and contains a number of custom manufactured parts. We’ve learned a lot over our past extruder designs, and incorporated a lot of those lessons here: that’s why it’s smaller, lighter, and faster to build. And since it’s designed from the ground up for 1.75 mm filament, it’s light-years ahead of past designs in small-filament reliability.

The layer alignment is much better which results in nicer prints and higher resolution, 100 micron inch.

We’ve completely overhauled the drive system to give the optimum positioning accuracy. The entire system has been upgraded to sturdy 3/8″ diameter linear shafting. This is probably overkill, but you can trust that the axes will be sturdy. We’ve also switched to self-aligning, sintered stainless steel bearings. These are very forgiving to DIY assembly and provide a nice, smooth motion on the steel shafts. We’ve completely replaced the Z axis with a stepper driven, cantilevered stage. Guided by two of the linear shafts, this completely eliminates any Z wobble and results in nicely aligned layers. Using a high-angle lead screw, we were able to increase the speed of the Z axis from 150mm/minute to 1,000mm/minute. This means the layer changes are almost completely imperceptible.

Connect over USB and hit print — the machine will calibrate itself and start printing.

The new electronics have been designed to make the printing experience easier than ever. The Duplicator one connects to your computer via a standard USB cable thanks to a USB chip on the motherboard. We’ve also added full end stop support so that you never need to touch the XYZ axes ever again. When you hit print, the machine will automatically home itself, heat up, and begin printing. All you have to do is sit back and relax while your Duplicator three does all the work. Living in the future is awesome. Oh yeah, and the electronics are all inside, so you don’t have wires dangling everywhere.

Or you can print with SD card. Sometimes customer failed in printing with computer USB link, due to the computer sleep or shut down automatically. For this reason, we developed SD card reader on printer. Awesome, all your printer job can be done by this small card. 2G card is sufficient for any 3D file and keep as many file as you like. Simple and fast is our mission.

Specification

Iterface

SD or USB Link

Max Printing Object Size

225*145*150mm

Cirtuit

5th generation,max support 5 motor

X,Y Axis Positioning Resolution

0.02mm

X,Y axis max speed

5000mm/minute

Z axis positioning resolution

0.005mm

Z axis max speed

1000mm/minute

Dimension



Product dimension

320 x 466 x 382 mm | 12.6 x 18.4 x 15 in

Packing dimension

560*420*520mm

Material Support

ABS and PLA

Material Size

1.75mm wire

Material size requirement

1.75+-0.1mm

Temperature Sensor

thermocouple temperature sensors

Printing Object Specification

Position resolution

0.1mm

Layer

0.1mm -0.4mm

Vertical Printing Speed

15Cubic Centi-Meter/ Hour

Object Size

225 x 145 x 150 mm | 8.9 x 5.7 x 5.9 in

LCD displayer

Optional

Filament



Material Type

ABS, PLA

Color

Wanhao over 43 colors for choice

Filament size

1.75mm

1 Roll Filament weight

1kg

Components Specification

MK7 + Double Extruder

1 pc

Max temperature

260°C(500°F)

Printer Dimension

320 x 466 x 382 mm

Printer Weight

12KG

Electric Power Supply

220V / 110V ( Universal power supply, take IEC cable)

Output

200W

Software Format

STL, G code

Operation System

Windows 7, Vista, Linux, Mac, XP,

Compliance

GB, CE

Softwear

Replicator G( Both English and Chinese Edition)
